SUS code obtains an optimized tetrahedral mesh from a tangled or valid one, by using local node relocation maintaining the initial mesh topology.
This code is an improved implementation (see TechNote.pdf for details) of our simultaneous smoothing and untangling method that is described in the following paper:
Simultaneous untangling and smoothing
of tetrahedral meshes, Computer Methods in Applied Mechanics
and Engineering, 192 (25) 2775--2787 (2003)
@article{Escobar20032775, title = "Simultaneous untangling and smoothing of tetrahedral meshes ", journal = "Computer Methods in Applied Mechanics and Engineering ", volume = "192", number = "25", pages = "2775 - 2787", year = "2003", note = "", issn = "0045-7825", doi = "http://dx.doi.org/10.1016/S0045-7825(03)00299-8", url = "http://www.sciencedirect.com/science/article/pii/S0045782503002998", author = "J.M. Escobar and E. Rodr\'{\i}guez and R. Montenegro and G. Montero and J.M. Gonz\'{a}lez-Yuste", keywords = "Mesh smoothing", keywords = "Mesh untangling", keywords = "Tetrahedral mesh generation", keywords = "Adaptive meshes", keywords = "Finite elements " }
If you use this code in a research work, we would be grateful if you cite the above paper (bibtex file). You can use the following reference to cite SUS Code
@misc{suscode, author = "Jos\'e Mar\'\{i}a Escobar and Eduardo Rodr\'{\i}guez and Rafael Montenegro and Gustavo Montero and Jos\'e Mar\'{\i}a Gonz\'alez-Yuste", title = "{SUS} code: simultaneous mesh untangling and smoothing code", howpublished = "http://www.dca.iusiani.ulpgc.es/SUScode", year = "2010" }
Download SUS code
You can find compilation and execution
instructions in the 00README file
Copyright © 2010 ULPGC
University of Las Palmas de Gran Canaria - ULPGC
Instituto Universitario de Sistemas Inteligentes y Aplicaciones
Numéricas en Ingeniería - SIANI
Autores: J.M. Escobar, E. Rodríguez, R.
Montenegro, G. Montero, J.M. González-Yuste
SUS Code is a registered product:
This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
Tangled mesh | Optimized mesh |
---|---|
![]() |
![]() |

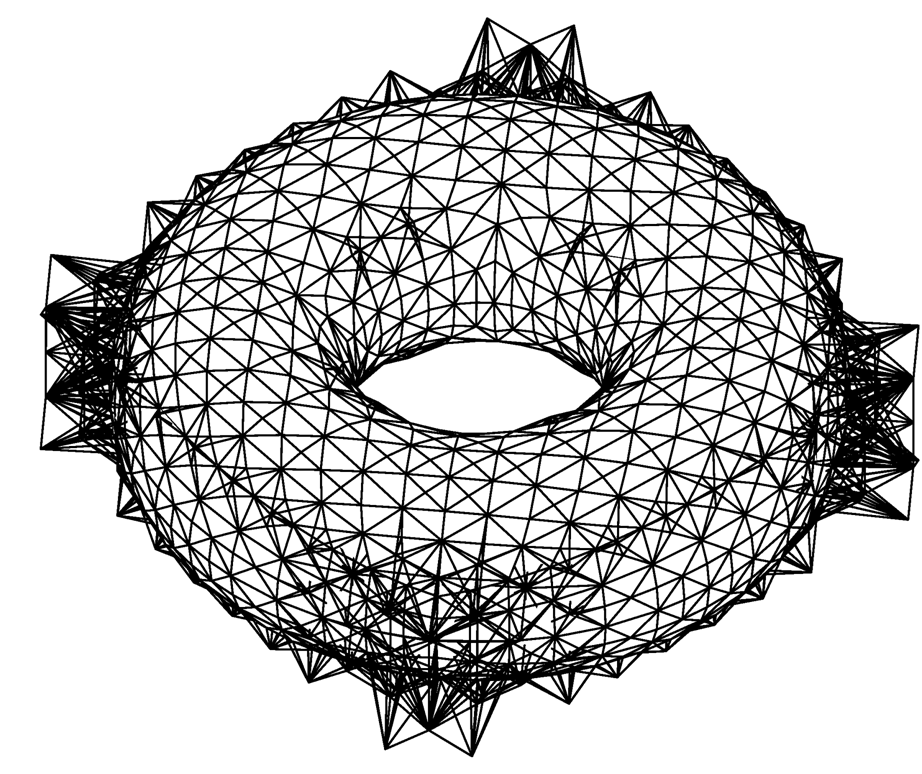

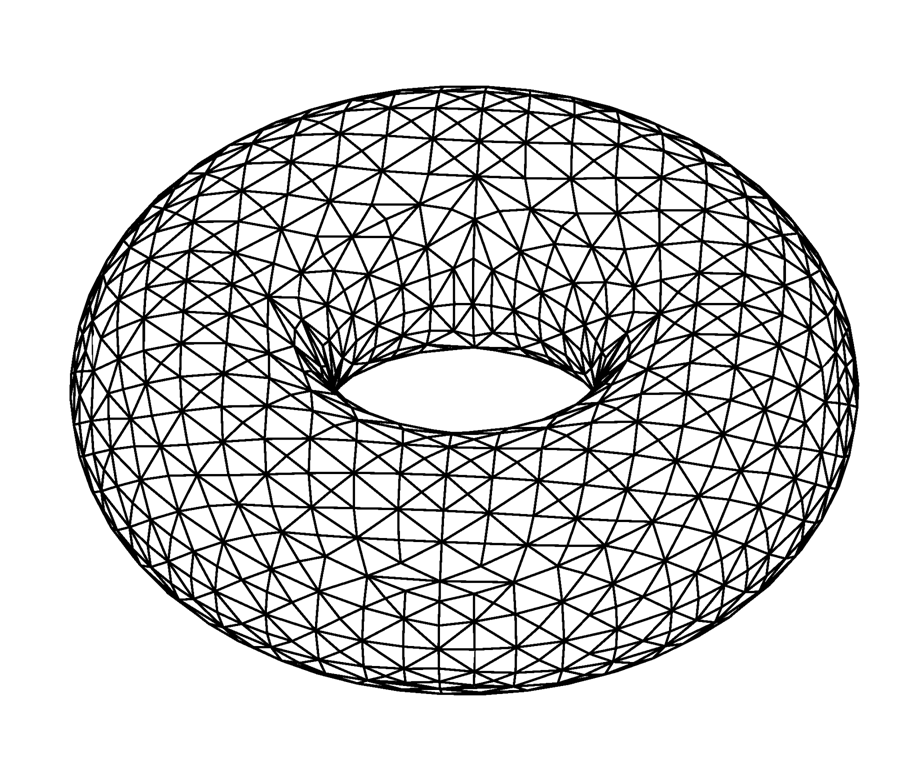

Torus | |
![]() |
![]() |

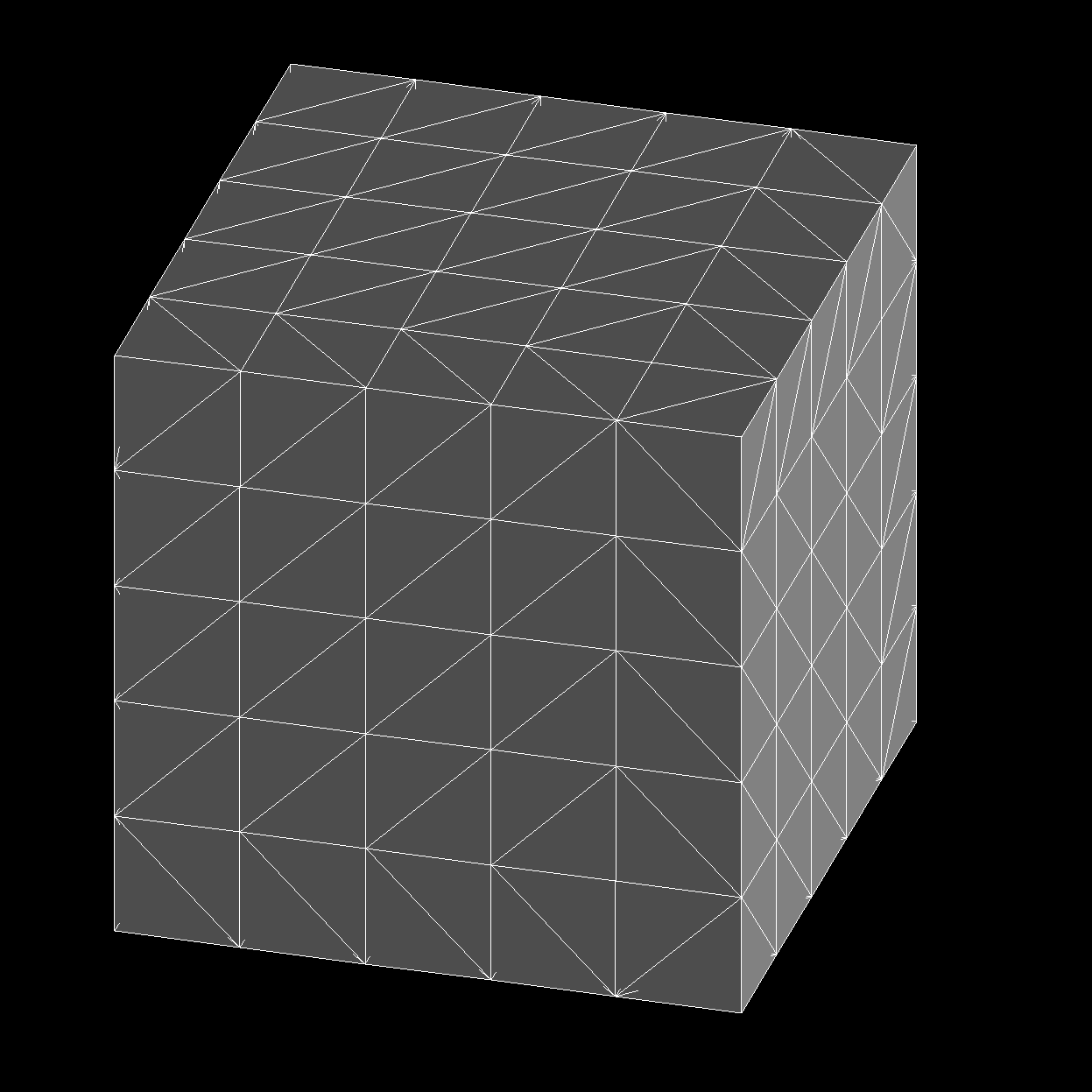

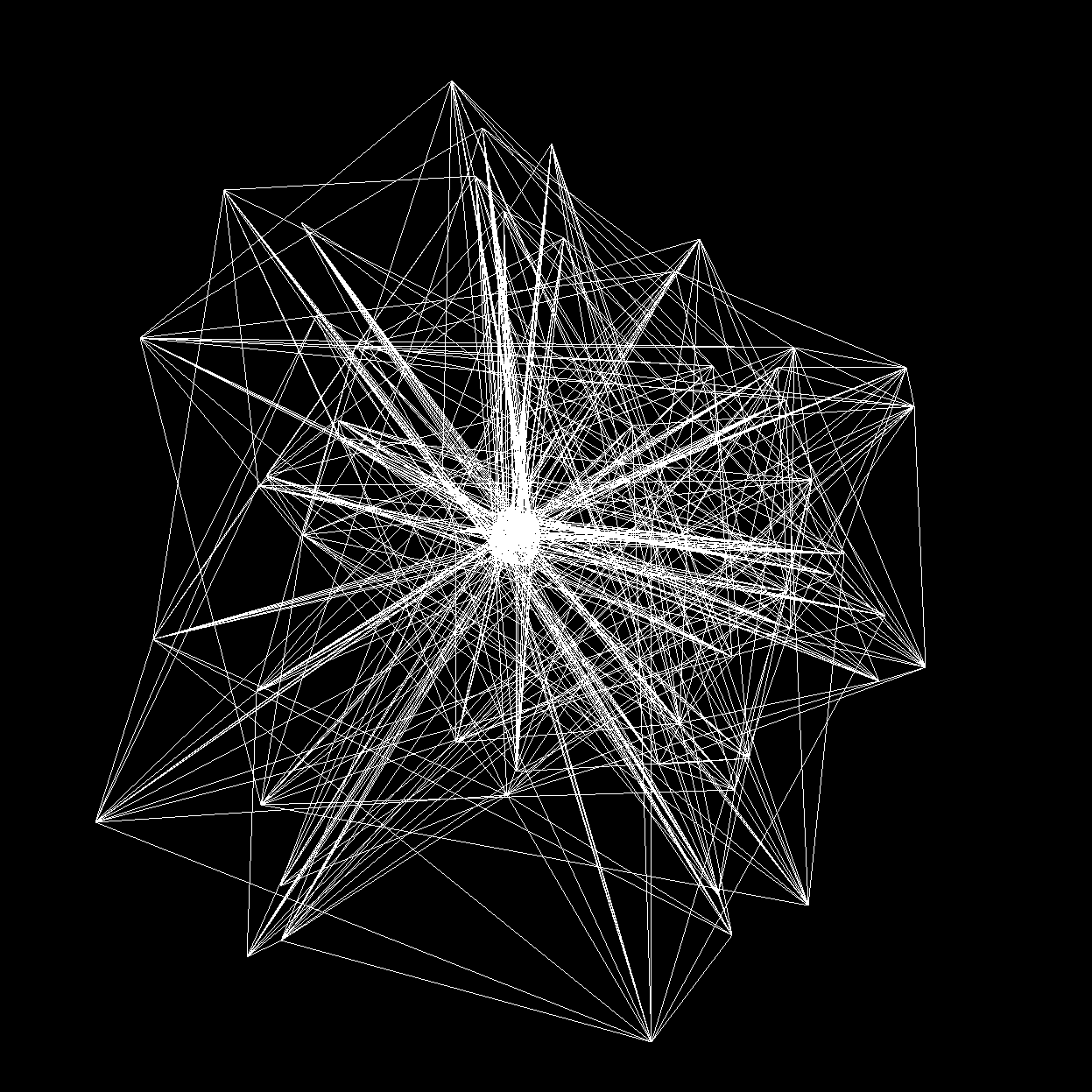

Cube | |
![]() |
![]() |

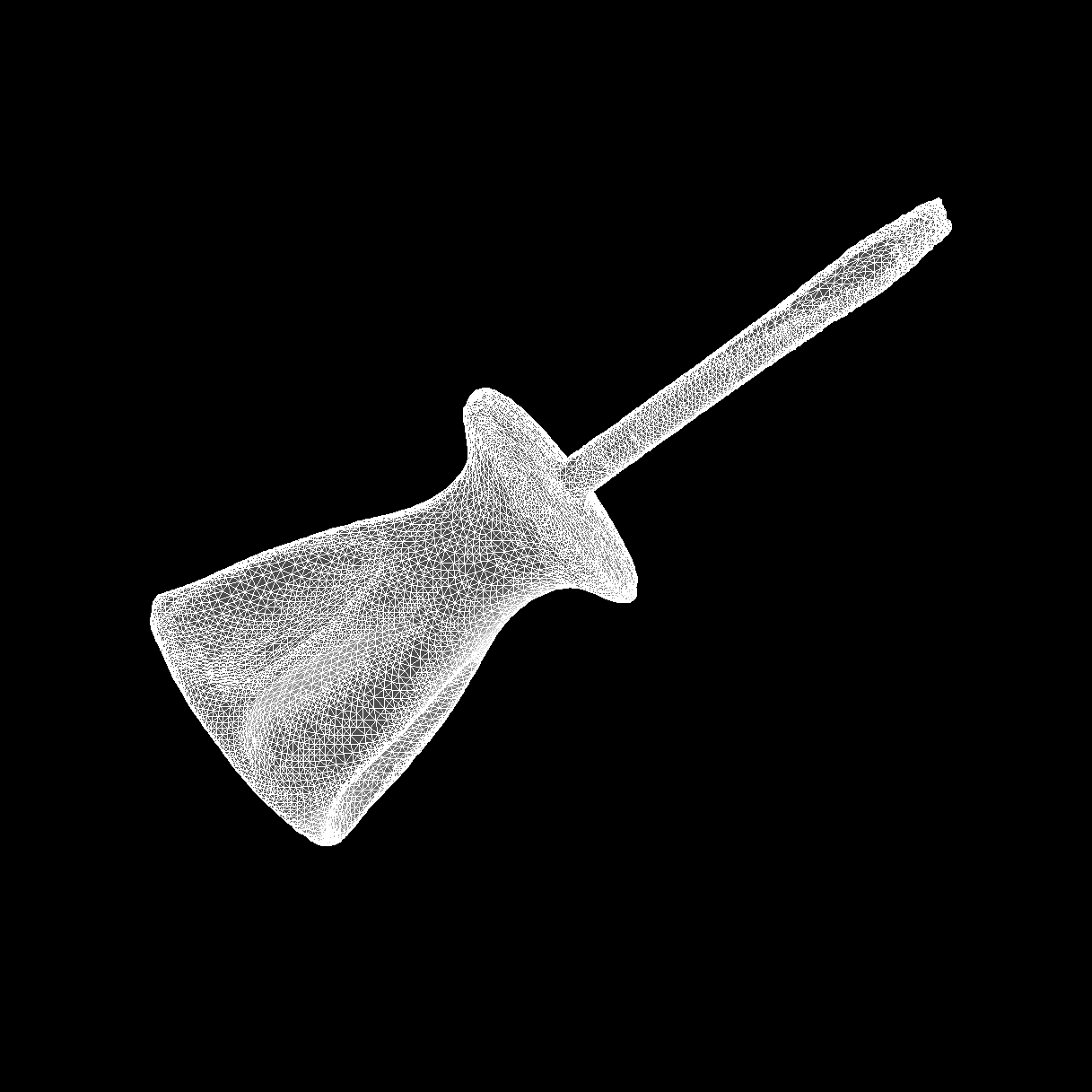

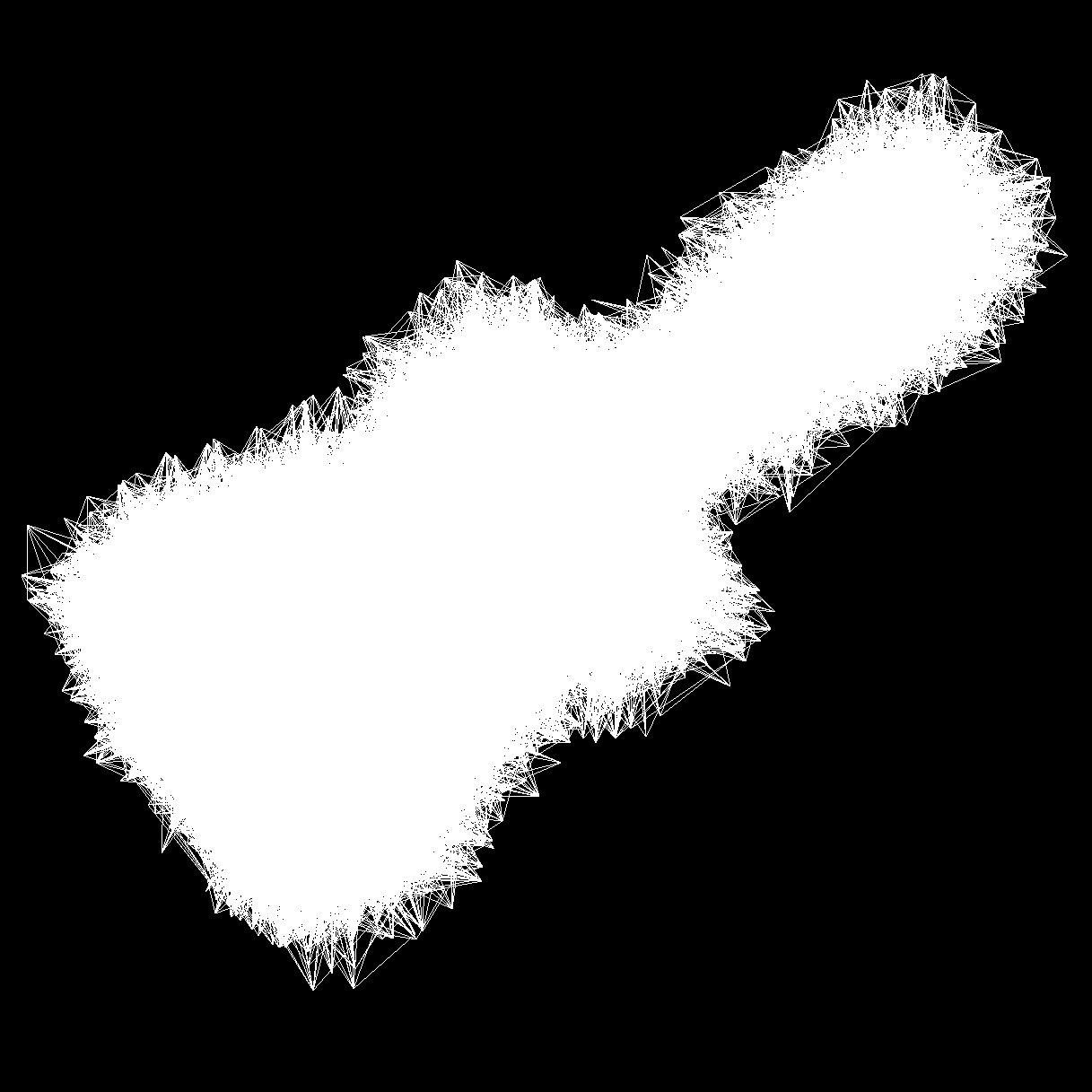

Screwdriver | |
![]() |
![]() |

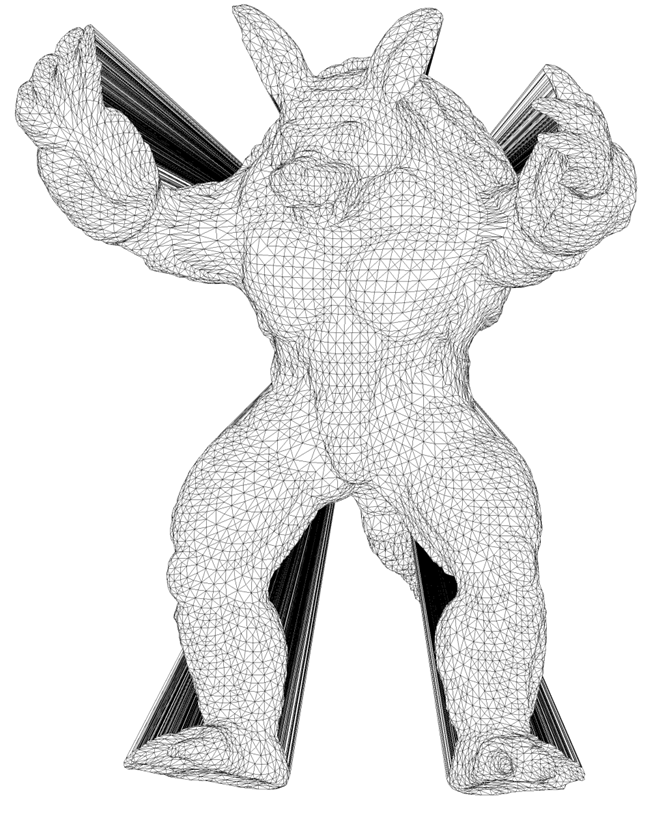

Armadillo | |
![]() |
![]() |

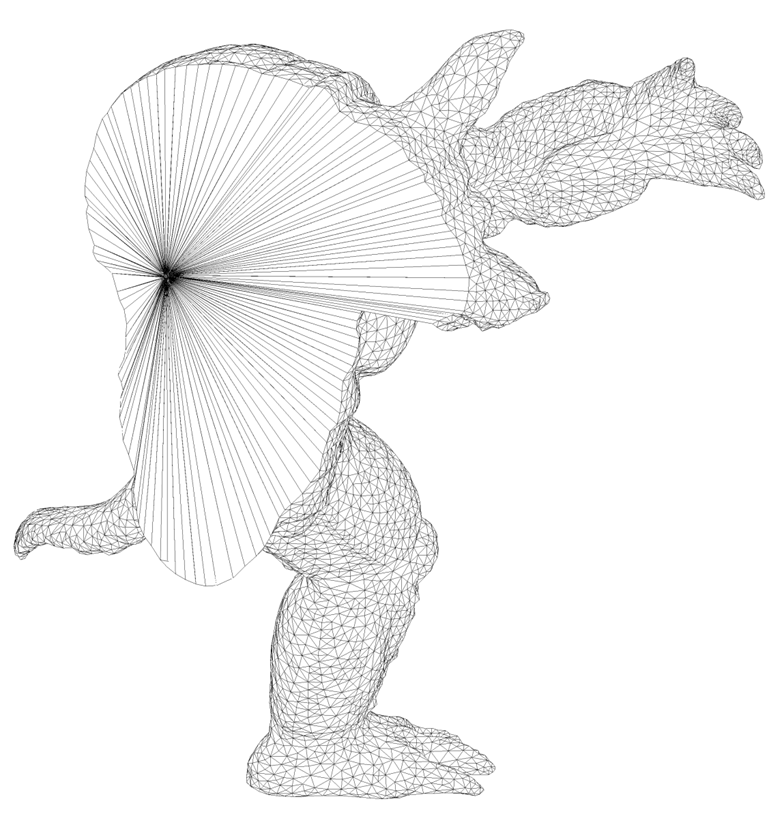

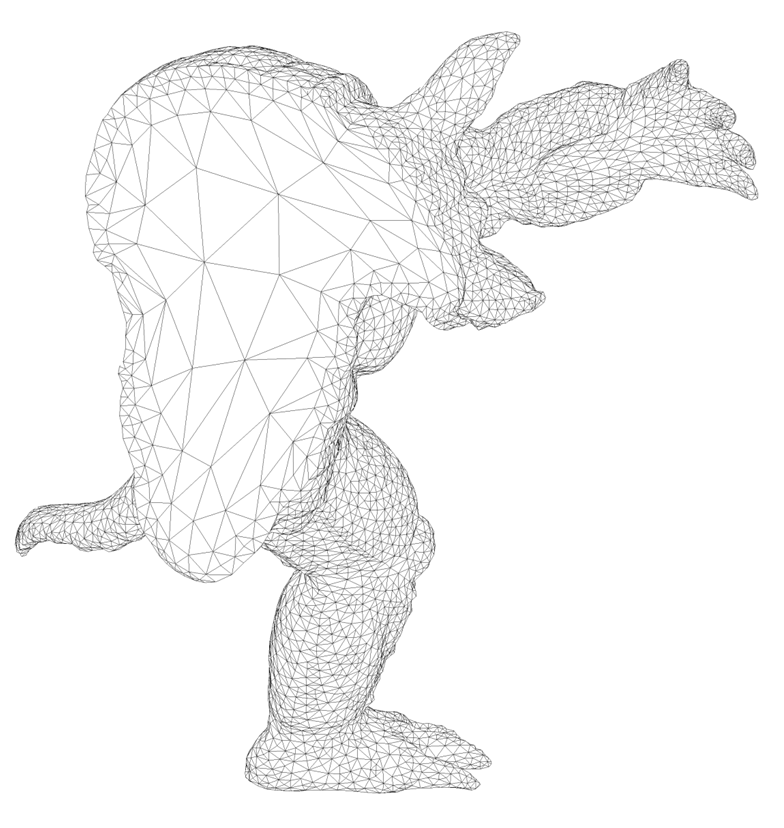

Armadillo (cross section) | |
![]() |
![]() |

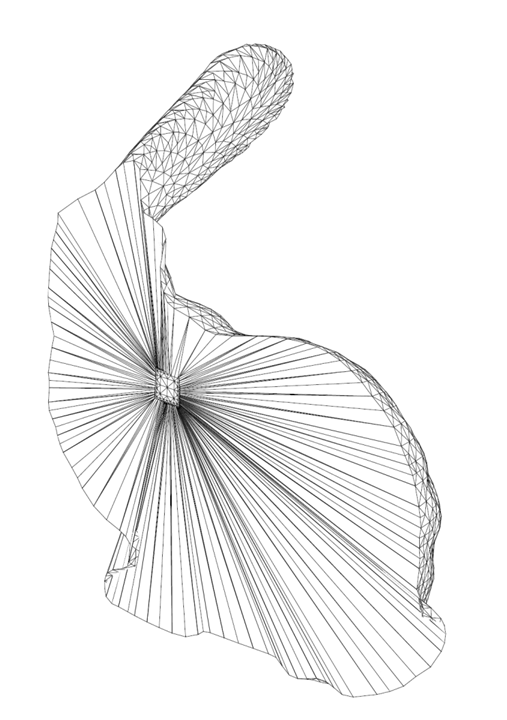

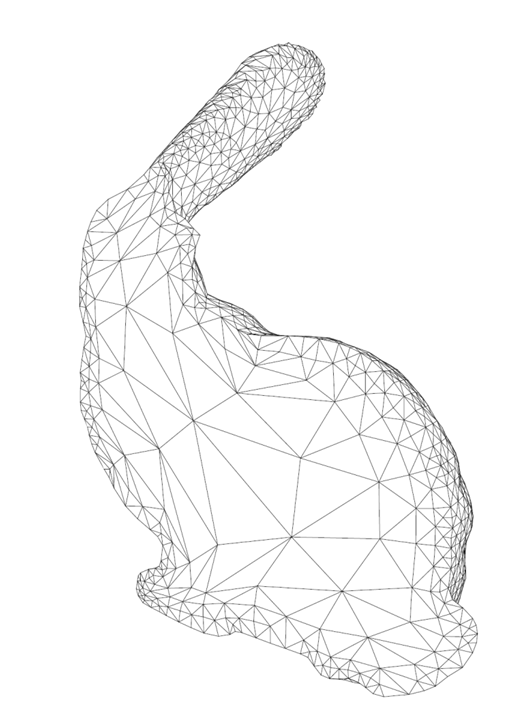

Bunny (cross section) | |
![]() |
![]() |

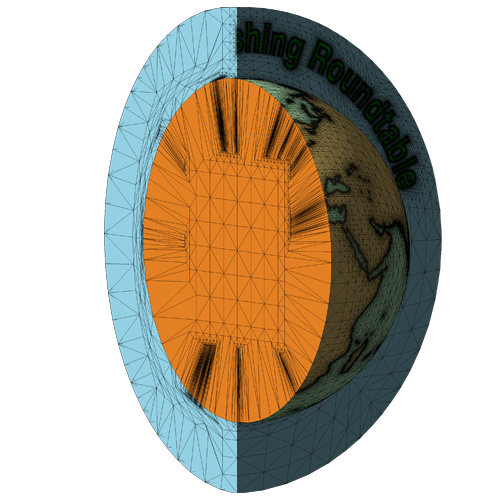

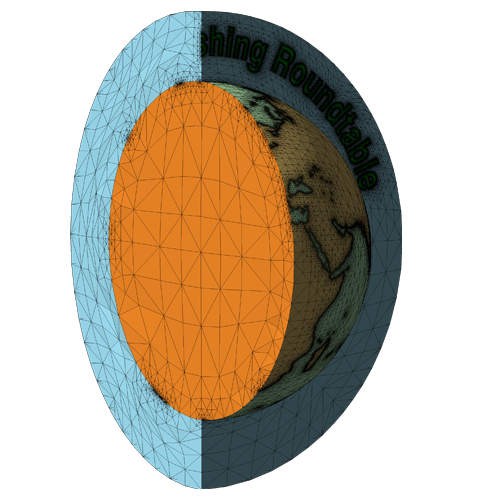

Earth | |
![]() |
![]() |

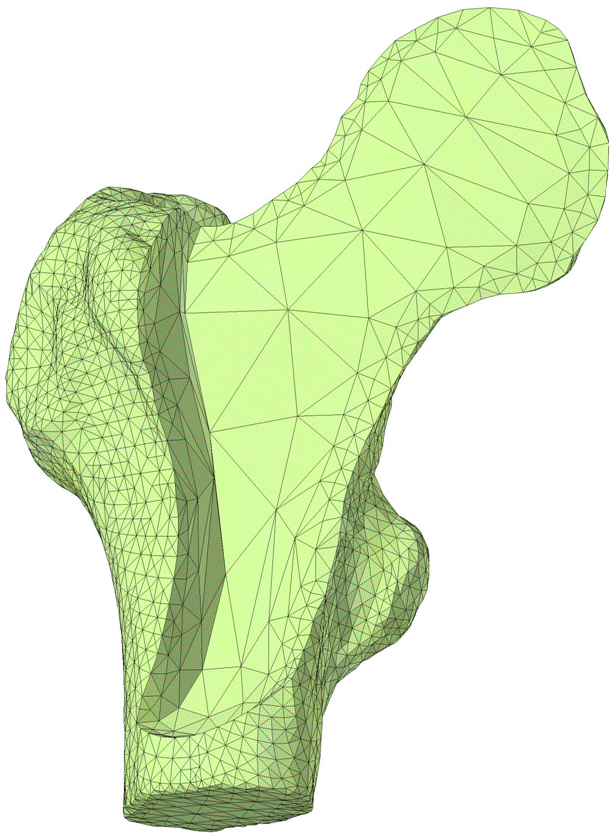

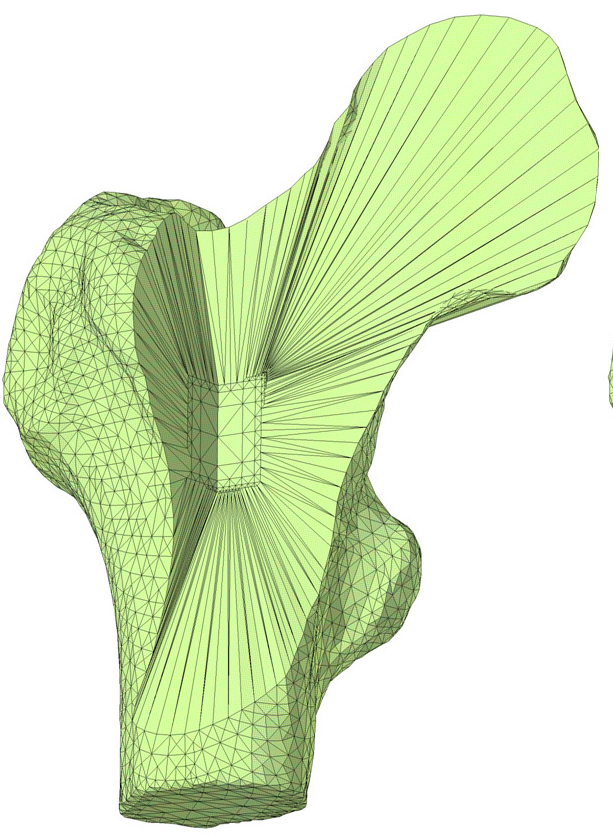

Bone |
